真空充氣包裝機主要技術參數

2014-3-22 9:41:01 []

常用臺式真空充氣包裝機規格及技術參數:

主要參數                                                    xj-400型                   xj-402型                        xj-800型

真空室低紀對壓強                               1.33                           1.33                                1.33

真空室有效尺寸                               460x460x100            420x460x100           1150x850x150

熱封條有效尺寸                                     400x10                      400x10                        800x10

每室熱封條數量                                        2                                    2                                    2

包裝能力                                                    2                                    4                                    2

真空包裝                                                    2                                    4                                    2

充氣包裝                                                    1                                    3                                    2

泵電機功率                                               0.75                               0.75                             1.5

熱封功率                                                   0.5                                0.75                               2

真空泵抽速                                               4                                     6                                   15

電源                                                        380V-50HZ                 380V-50HZ             380V-50HZ

外形尺寸憋機重量(參考)                      85                                   180                             400

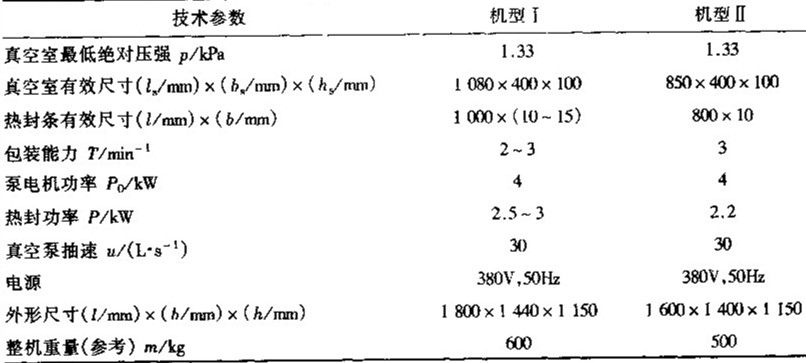

常用輸送帶式真空充氣包裝機規格及技術參數
